W01-095-0211 Firestone Rubber Air Spring 1R1A-480-330 Contitech Bus Suspension Air Bellows 737N

W01-095-0211 Firestone Rubber Air Spring 1R1A-480-330 Contitech Bus Suspension Air Bellows 737N

  • W01-095-0211 Firestone Rubber Air Spring 1R1A-480-330 Contitech Bus Suspension Air Bellows 737N
  • W01-095-0211 Firestone Rubber Air Spring 1R1A-480-330 Contitech Bus Suspension Air Bellows 737N
  • W01-095-0211 Firestone Rubber Air Spring 1R1A-480-330 Contitech Bus Suspension Air Bellows 737N
  • W01-095-0211 Firestone Rubber Air Spring 1R1A-480-330 Contitech Bus Suspension Air Bellows 737N
W01-095-0211 Firestone Rubber Air Spring 1R1A-480-330 Contitech Bus Suspension Air Bellows 737N
รายละเอียดสินค้า:
สถานที่กำเนิด: กวางตุ้ง, จีน
ชื่อแบรนด์: GUOMAT
ได้รับการรับรอง: ISO/TS16949:2009
หมายเลขรุ่น: 737N
การชำระเงิน:
จำนวนสั่งซื้อขั้นต่ำ: 6 ชิ้น
ราคา: $19.9/pc-$29.9/pc
รายละเอียดการบรรจุ: กล่องกล่องที่แข็งแกร่งหรือตามที่ลูกค้าต้องการ
เวลาการส่งมอบ: 2-8 วันทำงาน
เงื่อนไขการชำระเงิน: T/T, Western Union, L/C
สามารถในการผลิต: 1000pcs/สัปดาห์
ติดต่อ
รายละเอียดสินค้า
ชื่อรุ่น: สปริงลมสำหรับรถบัส วัสดุสปริง: ยางธรรมชาติ
การรับประกัน: รับประกัน 12 เดือน สี: สีดำ
รุ่นรถ: รสบัส บรรจุุภัณฑ์: กล่องกระดาษสีน้ำตาล
พิมพ์: เสียงร้องของอากาศ กู๊ดเยียร์: 9075
เน้น:

Firestone rubber air spring 1R1A-480-330

,

Contitech bus suspension air bellow

,

737N rubber air spring with warranty

W01-095-0211 Firestone Rubber Air Spring 1R1A-480-330 Contitech Bus Suspension Air Bellows 737N

Item Name: Bus Air Suspension Spring

Model: 737N

Warranty: 12 Months

Material: High Quality Rubber

Car Make: Mercedes Benz

Special Features: Vibration

Market: Aftermarket

Sample: Acceptable

Item Width: 265mm

Item Inner Diameter: 130.8mm

Item Design Height: 485mm

OEM Number of 737N

Contitech Bellows Number: 737N, 737 N

Firestone Part Number: W01-095-0211, W01 095 0211, W010950211

Firestone Style Number: 1R2A-480-330

Goodyear Part Number: 9075

Goodyear Flex Number: 556-03-9075, 556 03 9075, 556039075

Manufacturer Part Number
Airtech 110162
Airtech Ref. 3737
Blacktech RL9848
Dunlop F D13S06
Neotec AB434B
Phoenix 1F26
Prime-Ride New 9075
Prime-Ride New Flex No. 556-03-9075
Springride 9075
Springride Flex 556-03-9075
Taurus B127
Taurus BL127
Vibracoustic V1F26
Mercedes Benz 393.328.0101
Functions of Bus Suspension Air Springs
Function Category Core Function Specific Description & Mechanism
Fundamental Core Function Adaptive Load Support & Automatic Leveling
  • Variable Stiffness: Adjusts internal air pressure to adapt to changing vehicle loads (empty/full), providing consistent support.
  • Maintains Level: Automatically keeps the vehicle body at a pre-set height regardless of load, ensuring stable headlight alignment, suspension geometry, and ground clearance.
Ride & Comfort Function Superior Ride Comfort
  • Excellent Vibration Damping: Uses compressed air as an elastic medium to effectively absorb and isolate road shocks and vibrations.
  • Stable Frequency: Maintains the system's natural frequency within the range most comfortable for the human body (approx. 1-1.5 Hz) across various loads, providing a "magic carpet" ride.
Safety & Handling Function Enhanced Handling & Safety
  • Improved Road Holding: The soft spring characteristic allows the tires to better follow road contours, increasing grip and improving stability and braking efficiency on slippery surfaces.
  • Reduces Body Roll & Pitch: Effectively minimizes body lean during cornering and "dive" during braking, enhancing control and safety.
Convenience & Auxiliary Function Body Height Adjustment
  • Kneeling Function: Lowers the bus at a stop to create a step-less entry, greatly assisting the elderly, children, and passengers with reduced mobility.
  • Variable Clearance: Raises the body for rough terrain and lowers it for high-speed driving to improve aerodynamics and fuel economy.
Vehicle Protection Function Protects Vehicle & Components
  • Shock Absorption: Significantly reduces the transmission of road impacts to the vehicle frame, body, and driveline components, extending overall service life.
  • Protects Cargo: The smooth ride minimizes vibration damage to onboard equipment and passenger luggage.
Related Pictures

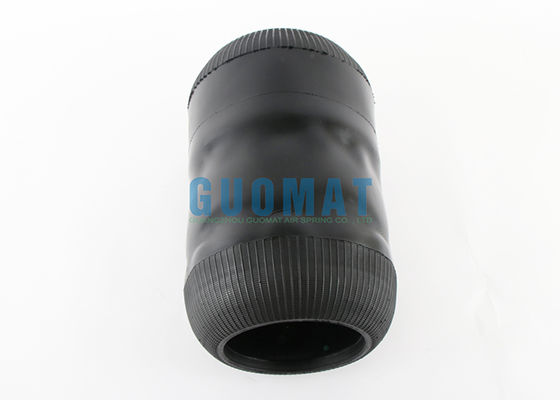

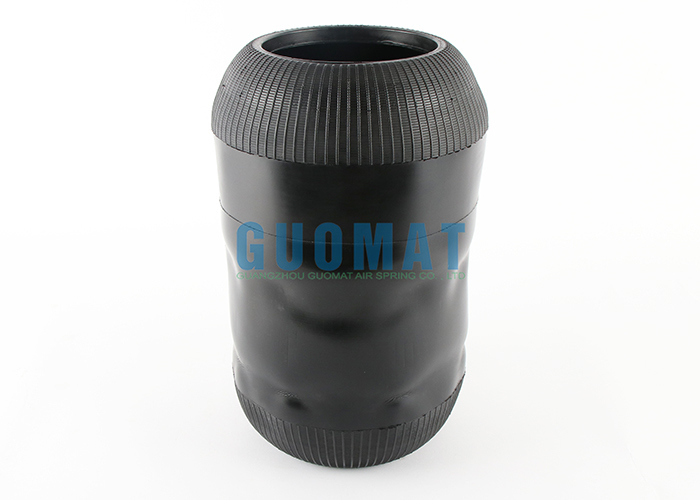

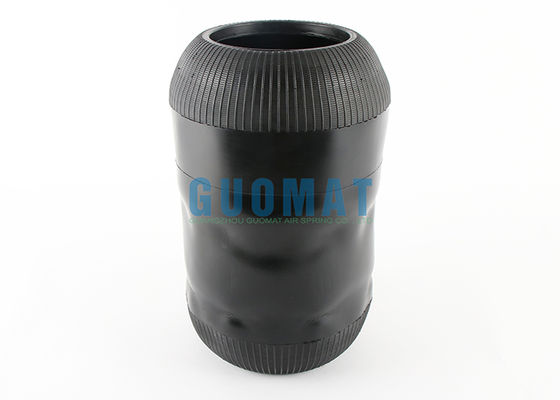

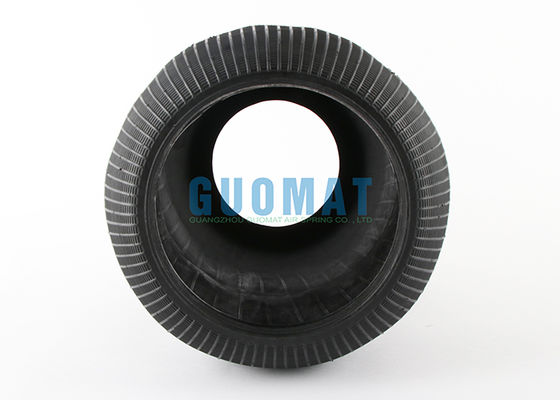

W01-095-0211 Firestone Rubber Air Spring 1R1A-480-330 Contitech Bus Suspension Air Bellows 737N 0 W01-095-0211 Firestone Rubber Air Spring 1R1A-480-330 Contitech Bus Suspension Air Bellows 737N 1
