SP 2 B 22 R Double Convoluted Air Spring G 3/4 Air Inlet Big Travel Phoenix Rubber Bellows

SP 2 B 22 R Double Convoluted Air Spring G 3/4 Air Inlet Big Travel Phoenix Rubber Bellows

รายละเอียดสินค้า:
สถานที่กำเนิด: จีน
ชื่อแบรนด์: GUOMAT
ได้รับการรับรอง: ISO/TS16949:2009
หมายเลขรุ่น: 2B6330M12-G3/4
การชำระเงิน:
จำนวนสั่งซื้อขั้นต่ำ: 6 ชิ้น
ราคา: US$59.9-69.9/PC
รายละเอียดการบรรจุ: กล่องกระดาษที่แข็งแกร่งหรือตามที่ลูกค้าต้องการ
เวลาการส่งมอบ: 3-7 วันทำการ
เงื่อนไขการชำระเงิน: L/C, D/A, D/P, T/T ตะวันตกสหภาพ
สามารถในการผลิต: 1,000 ชิ้น / สัปดาห์
ติดต่อ
รายละเอียดสินค้า
ชื่อ: สปริงแอร์ยาง ตัวอย่าง: มีอยู่
คุณภาพ: ตรวจสอบแล้ว 100% ที่ได้ถูกทำด้วยเกลียว: ม12
หมายเลขเลเยอร์: 2 การบิดตัว ระยะเวลาการรับประกัน: 12 เดือน
ฟีนิกซ์: เอสพี 2 บี 22 ร แผ่นด้านล่าง Dia: 225 มม
เน้น:

Double Convoluted Air Spring

,

Rubber Bellows Air Spring

,

G 3/4 Air Inlet Spring

SP 2 B 22 R Double Convoluted Air Spring
G 3/4 Air Inlet Big Travel Phoenix Rubber Bellows
Product Overview
The GUOMAT double convoluted air spring is engineered to replace Phoenix SP 2 B 22 R rubber bellows in demanding industrial environments. Designed with a G 3/4 air inlet and large working stroke, this air spring delivers reliable load-bearing capability while providing exceptional vibration isolation and movement compensation.
Its double convoluted structure allows greater vertical travel than traditional rubber mounts, making it suitable for equipment that requires continuous motion, shock absorption, or variable load support. The flexible rubber bellows automatically adapt to changing operating conditions, helping protect machinery components from excessive vibration and impact forces.
Built with premium elastomer materials and reinforced cord construction, the air spring maintains stable performance under repetitive compression cycles. It is widely used in industrial automation systems, conveyors, lifting devices, machine tools, and vibration-sensitive production equipment.
Product Specifications
Product Type Double Convoluted Rubber Air Spring
Brand GUOMAT
GUOMAT Part Number 2B6330M12-G3/4
Reference Model SP 2 B 22 R
Cross Reference Numbers
  • Phoenix: SP2B22R
  • Phoenix: SP 2B22R
  • Phoenix: SP 2B 22R
  • Phoenix: SP 2B 22 R
Technical Data

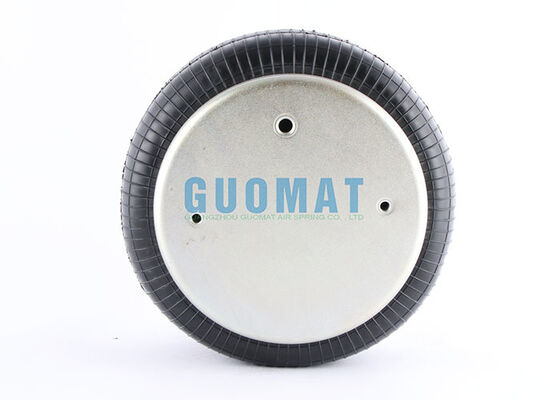

Top Cover Plate
Diameter: 225mm, 2 M12 threaded holes, center-to-center distance between bolts: 157.5mm
Vent specification: G3/4, center-to-center distance between vent and threaded holes: 73mm
Bottom Cover Plate
Diameter: 225mm, 2 M12 threaded holes, center-to-center distance between bolts: 157.5mm
Dimensions
Natural outer diameter: 325mm, Design height: 180mm, Maximum height: 280mm, Minimum height: 80mm
After-Sales Support
GUOMAT is committed to providing comprehensive after-sales service and technical support for every customer. Our experienced engineering team assists customers throughout the entire purchasing process, from product selection and cross-reference identification to installation guidance and maintenance recommendations.
Additional Services Include:
  • One-year warranty against manufacturing defects
  • Technical consultation before and after purchase
  • Cross-reference and interchange assistance
  • Installation and application guidance
  • Fast response to product inquiries and service requests
  • Global shipping and logistics support
  • Quality inspection reports available upon request
Product Images

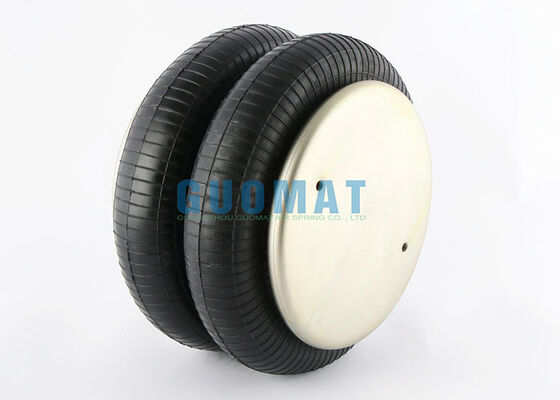

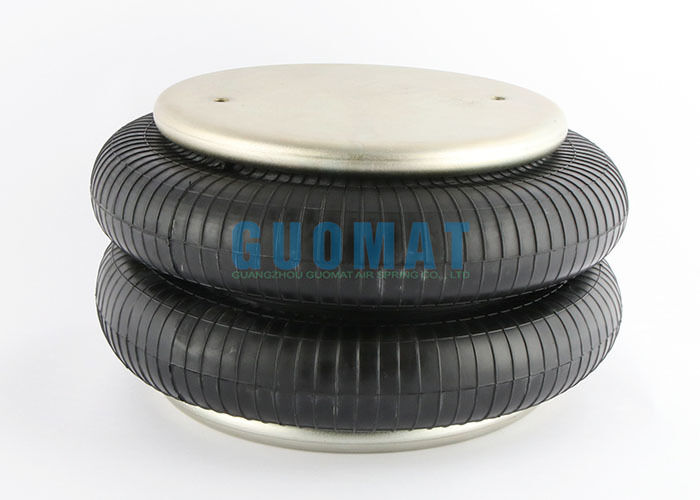

GUOMAT SP 2 B 22 R Double Convoluted Air Spring - Front View GUOMAT SP 2 B 22 R Double Convoluted Air Spring - Side View
